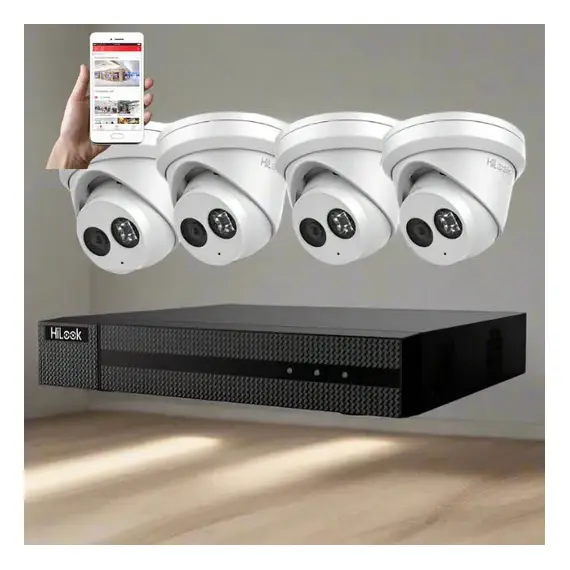

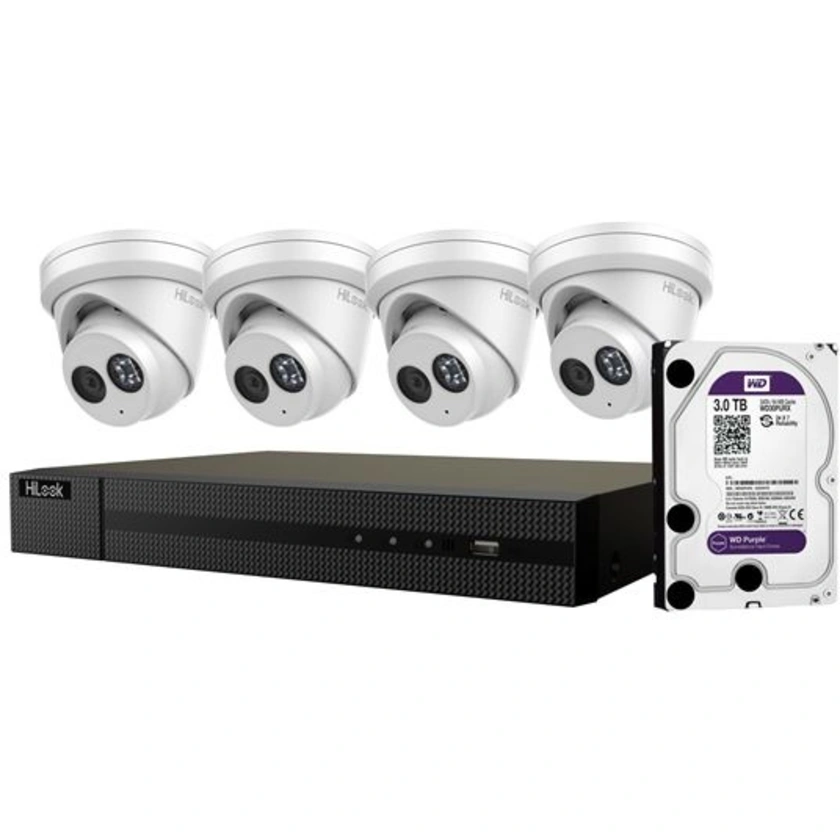

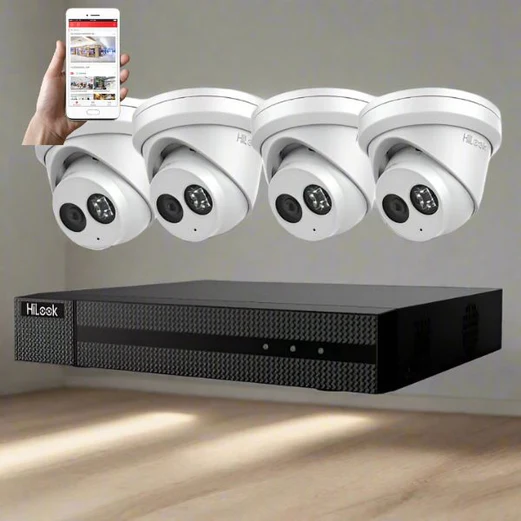

HiLook by Hikvision 4 Channel CCTV Kit, 6MP, 4 Channel NVR - IK-4346TH-MM/P/C
$73999
$99600
HiLook IK-4346TH-MMPC Specifications
Feature | Description |
---|---|

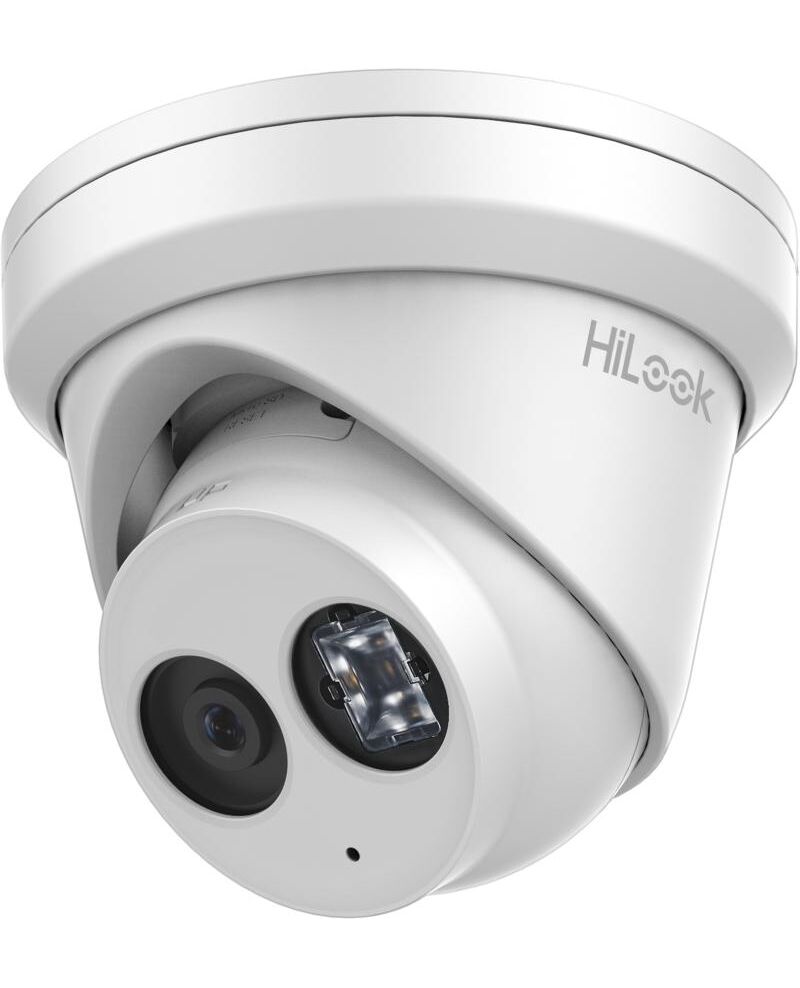

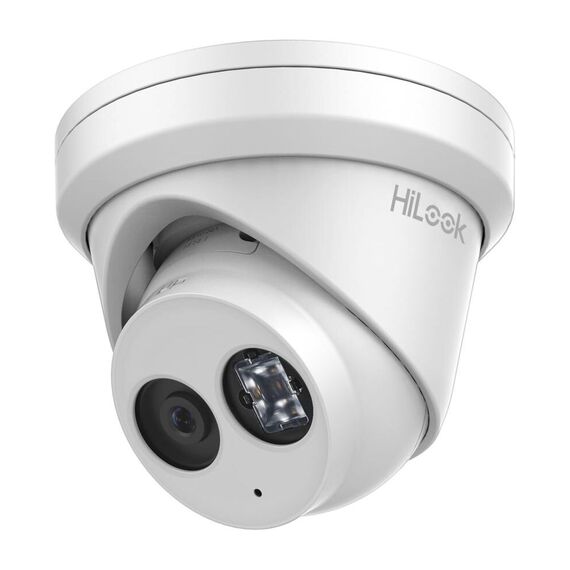

Camera | 6MP Fixed Turret Camera |
No of cameras | 4 |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Min. Illumination | Colour: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Lens | 2.8mm fixed lens |
Lens Mount | M12 |
Angle of View | Horizontal: 103°, Vertical: 55°, Diagonal: 122° |
Day/Night | IR cut filter |
DNR | 3D DNR |
WDR | 120dB WDR |
BLC/HLC | Supported |
Video Compression | H.265+/H.265/H.264+/H.264 |
Video Bit Rate | 32 Kbps to 8 Mbps |
Resolution | 6MP (3072 × 2048), 5MP (2880 × 1620), 4MP (2688 × 1520), 3MP (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720) etc. |
Frame Rate | 6MP: up to 20 fps, 5MP: up to 20 fps, 4MP/3MP/1080p/720p: up to 25/30 fps |
Network | RJ-45 (10/100M) |
Protocols | TCP/IP, IPv4, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, SMTP, NTP, HTTPS, FTP, UPnP, SNMP |
ONVIF | Conformance: Profile S, Profile G, Profile T |
Certifications | CE, FCC, UL, IC, CCC, KC, RoHS, WEEE, REACH, IEC 60950-1, EN 60950-1, IEC 62368-1, EN 62368-1, EN 55032, EN 50130-4, EN 55035: 2017 |
Model
IK-4346TH-MM/P/C
Camera Lens
2.8mm
Dynamic Range
WDR 120dB
IR Range
UP TO 30m
Material
Metal Body
Protection
IP67
Resolution
6MP
Type
Fixed Lens Turret
NVR
Storage
3TB HDD
