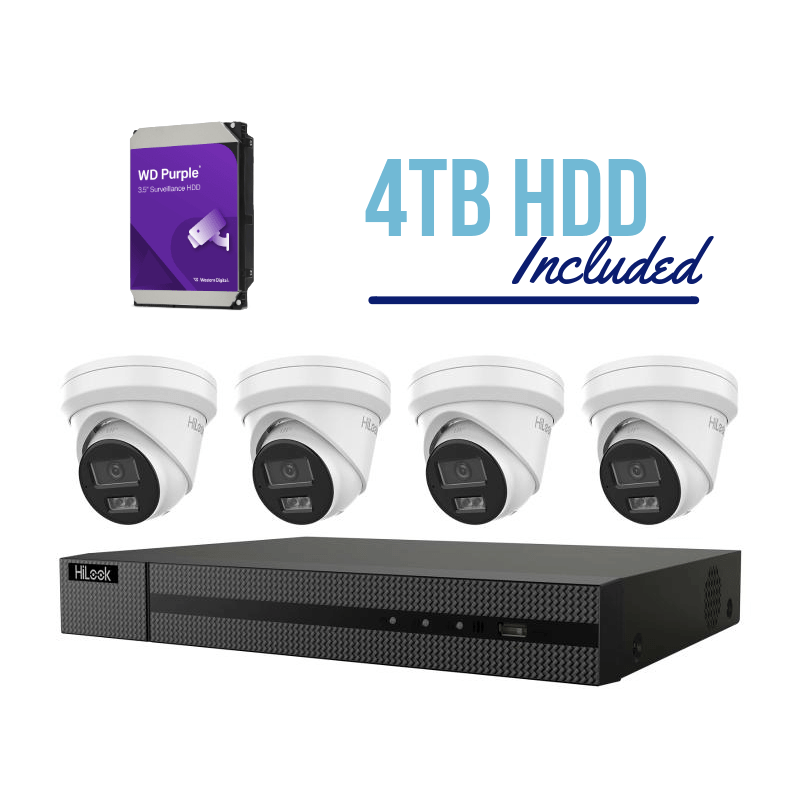

HiLook IK-6086TH-MMP 6MP 8Ch Surveillance Camera Kit With 4TB HDD

Camera

Specification

• • 6MP 8Ch Surveillance Camera Kit With 4TB HDD

Camera

• • Image Sensor – 1/2.4″ Progressive Scan CMOS
  • Max. Resolution – 3200 × 1800
  • Min. Illumination – Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time – 1/3 s to 1/100,000 s
  • Day & Night – IR cut filter
  • Angle Adjustment – Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• • Lens Type – Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV – 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°, 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
  • Lens Mount – M12
  • Iris Type – Fixed
  • Aperture – F1.6

DORI

• • DORI -2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m, 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• • Supplement Light Type – IR
  • Supplement Light Range – Up to 30 m
  • Smart Supplement Light – Yes
  • IR Wavelength – 850 nm

Video

• • Main Stream – 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream – 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360), 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression – Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265 /H.264/MJPEG
  • Video Bit Rate – 32 Kbps to 16 Mbps
  • H.264 Type – Baseline Profile, Main Profile, High Profile
  • H.265 Type – Main Profile
  • Bit Rate Control – CBR, VBR
  • Scalable Video Coding (SVC) – H.264 and H.265 encoding
  • Region of Interest (ROI) – 1 fixed region for main stream

Audio

• • Audio Type – Mono sound
  • Environment Noise Filtering – Yes
  • Audio Sampling Rate -8 kHz/16 kHz
  • Audio Compression – G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate – 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726 ) /32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• • Security – Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live View – Up to 6 channels
  • API – Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
  • Protocols – TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
  • User/Host – Up to 32 users, 3 user levels: administrator, operator, and user
  • Client – iVMS-4200, HiLook Vision
  • Web Browser – Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• • Wide Dynamic Range (WDR) – 120 dB
  • SNR – ≥ 52 dB
  • Day/Night Switch – Day, Night, Auto, Schedule
  • Image Enhancement – BLC, HLC, 3D DNR
  • Image Settings – Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask – 4 programmable polygon privacy masks

Interface

• • Ethernet Interface – 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Microphone – Yes
  • Reset Key – Yes

Event

• • Basic Event – Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Smart Event – Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)
  • Linkage – Upload to FTP, send email, notify surveillance center, trigger capture

General

• • Power – 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
  • Material – Metal
  • Dimension – Ø127.3 mm × 95.9 mm (Ø5.0″ × 3.8″)
  • Package Dimension – 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Weight – Approx. 600 g (1.3 lb.)
  • With Package Weight – Approx. 909 g (2.0 lb.)
  • Storage Conditions – -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions – -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language – English, Ukrainian
  • General Function – Heartbeat, anti-banding, mirror, password protection, password reset via email
