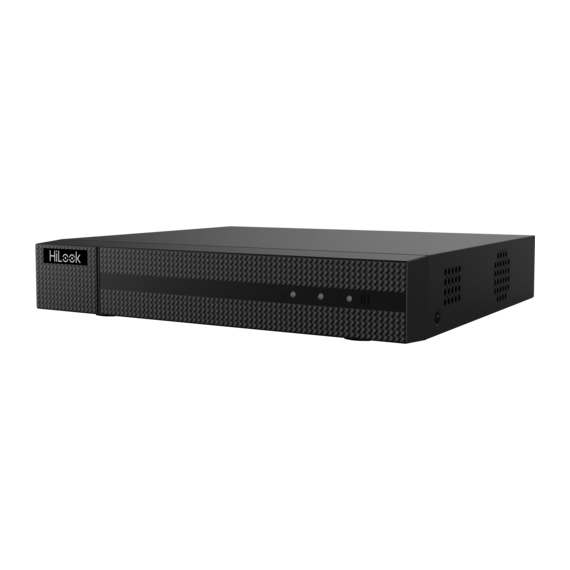

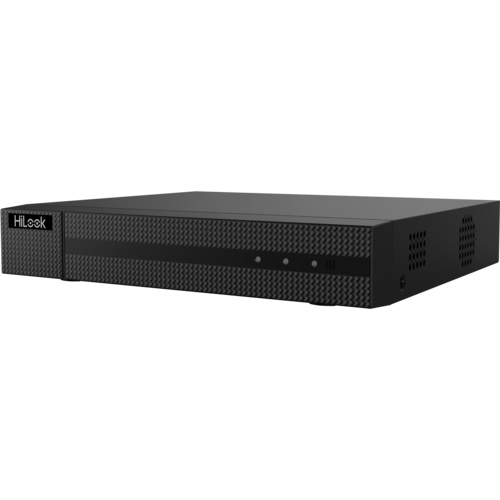

HiLook 8-ch 1080p 1U H.265 DVR - DVR-208Q-K1

Write a review

CODE:

300226926

$162⁰⁰ $220⁰⁰ -26%

In stock

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
Supports 4 MP lite, and when enabled the image effect is similar with 4 MP
One HDD for continuous video recording
Smart search for efficient playback.

Minimum quantity for "HiLook 8-ch 1080p 1U H.265 DVR - DVR-208Q-K1" is 1.

Buy now with 1-click

Add to wish list Compare

Shipping time and rates

8-Channel 1080p H.265 Pro+ DVR Specifications

Category	Feature	Details
Video & Audio	IP Video Input	4-ch (expandable to 12-ch) Up to 6 MP resolution Supports H.265+/H.265/H.264+/H.264
	Analog Input	8-ch BNC (1.0 Vp-p, 75Ω) with coaxitron
	HDTVI Input	4 MP/3 MP/1080p/720p *3 MP limited to channels 1/2
	AHD/HDCVI Input	4 MP/1080p/720p
	Outputs	VGA & HDMI: 1920×1080@60Hz max
	Audio I/O	1-ch RCA input + 8-ch coaxial 1-ch RCA output + Two-way audio
	Synchronous Playback	8-ch simultaneous
	Stream Type	Dual-stream (Video/Video+Audio)
Recording	Compression	H.265 Pro+/H.265 Pro/H.264+
	Resolution	4MP Lite (when enabled) down to CIF 1080p Lite mode support
	Frame Rate	15–30 fps (varies by resolution/mode): - 4MP Lite@15fps - 1080p@25/30fps (P/N) - Sub-stream@12–30fps
	Bitrate	Video: 32 Kbps–6 Mbps Audio: 64 Kbps (G.711u)
Network	Connections	64 remote access
	Protocols	ONVIF, HiLookVision, TCP/IP, PPPoE, NTP, SMTP
	Interface	RJ45 10/100 Mbps
Storage	SATA	1× interface (10TB/disk max)
Storage	USB	2× USB 2.0 front panel
General	Power	12VDC @1.33A (≤12W without HDD)
	Environment	-10°C to +55°C 10–90% humidity
	Dimensions	260×222×45 mm (1U rack)
	Weight	≤1 kg (2.2 lb)
