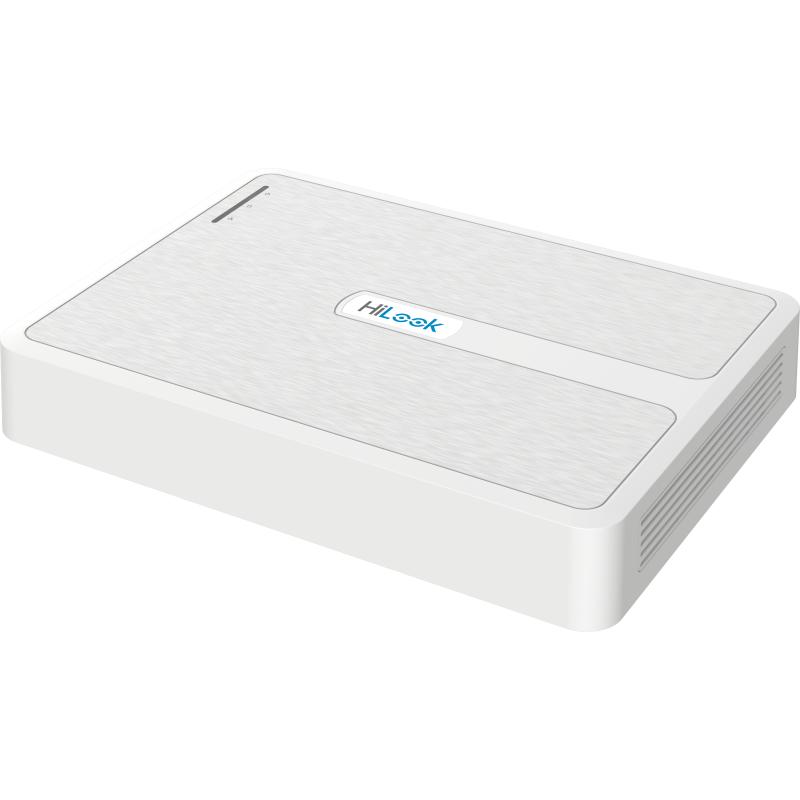

HiLook 8-ch 1080p Mini 1U Lite H.264 DVR - DVR-108G-F1
Write a review
$8600 $11700
Add to cart

HiLook 8-ch 1080p Mini 1U Lite H.264 DVR - DVR-108G-F1

Write a review
300225926
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Long distance transmission over UTP and coaxial cable
  • Supports 1080p lite, and when enabled the image effect is similar with 1080p
  • Encoding abilty up to 1080p lite @ 12 fps
  • One HDD for continuous video recording
  • Smart search for efficient playback.

5 in 1   HD

Minimum quantity for "HiLook 8-ch 1080p Mini 1U Lite H.264 DVR - DVR-108G-F1" is 1.

Add to wish list Compare
Shipping time and rates

DVR-108G-F1 Specifications Table

Category Specification
Video and Audio
  • IP Video Input: 2-ch (up to 10-ch), up to 5 MP resolution, support H.265+/H.265/H.264+/H.264 IP cameras.
  • Analog Video Input: 8-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection.
  • HDTVI Input: 1080p25, 1080p30, 720p25, 720p30.
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30.
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30.
  • CVBS Input: PAL/NTSC.
  • HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable.
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ).
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input).
  • Synchronous playback: 8-ch.
Recording
  • Video Compression: H.264+/H.264.
  • Encoding Resolution: When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF.
  • Frame Rate: Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N). When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N). For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N). Sub-stream: CIF/QVGA/QCIF@12fps.
  • Video Bitrate: 32 Kbps to 4 Mbps.
  • Dual-stream: Support.
  • Stream Type: Video, Video & Audio.
  • Audio Compression: G.711u.
  • Audio Bitrate: 64 Kbps.
Network
  • Remote Connection: 64.
  • Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.
  • Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface.
  • Auxiliary Interface: SATA: 1, SATA interface, Capacity: Up to 6 TB capacity for each disk.
  • USB Interface: Rear panel: 2 × USB 2.0.
  • Alarm In/Out: N/A.
General
  • Power Supply: 12 VDC, 1.5 A.
  • Consumption: ≤ 12 W (without HDD).
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F).
  • Working Humidity: 10% to 90%.
  • Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch).
  • Weight: ≤ 0.8 kg (1.8 lb.).
Model
DVR-108G-F1
