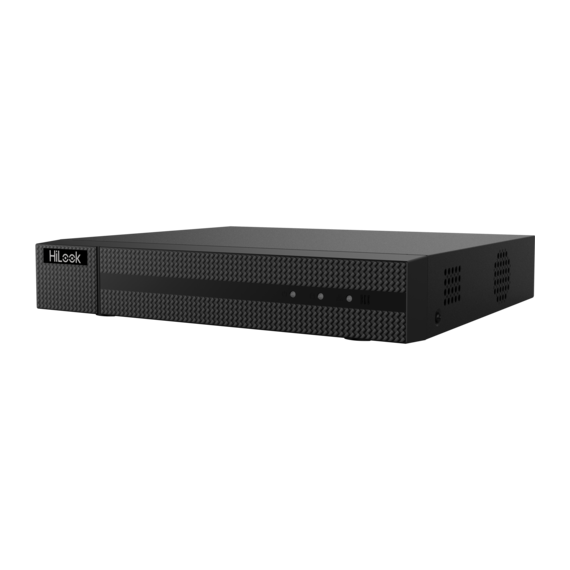

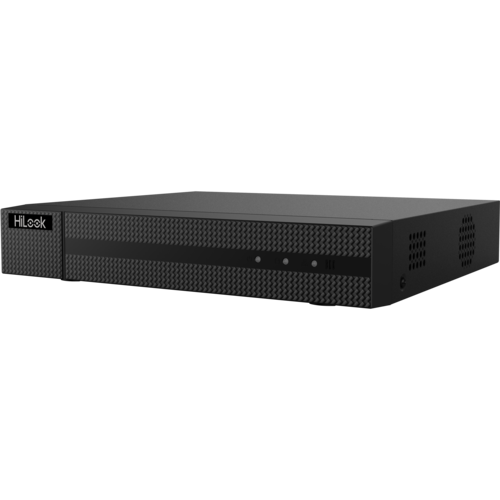

HiLook 8-ch 5 MP 1U H.265 DVR (Support 10TB HDD) - DVR-208U-M1

Write a review

CODE:

300227955

$279⁰⁰ $372⁰⁰ -25%

In stock

Deep learning based human and vehicle targets classification of Motion Detection 2.0
8 analog channels and 1 HDD 1U DVR
Efficient H.265 Pro+ compression technology
Up to 8 MP@8 fps and 5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 16 network cameras can be connected.

Mobile phone 5 in 1 UP TO 10TB HDD

Free metro shipping for orders above $400

Minimum quantity for "HiLook 8-ch 5 MP 1U H.265 DVR (Support 10TB HDD) - DVR-208U-M1" is 1.

Buy now with 1-click

Add to wish list Compare

Shipping time and rates

Description
Features
Reviews

Product Specifications

Feature	Specification
Motion Detection 2.0	Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio	IP Video Input: 4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Resolution: Up to 8 MP Supported Codecs: H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input: 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input: 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps AHD Input: 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps HDCVI Input: 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps CVBS Input: PAL/NTSC HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output Mode: HDMI/VGA simultaneous output Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) Synchronous Playback: 8-ch
Recording	Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate: Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate: 32 Kbps to 10 Mbps Dual-stream: Support Stream Type: Video, Video & Audio Audio Compression: G.711u Audio Bitrate: 64 Kbps
Network	Total Bandwidth: 128 Mbps Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection: 64 Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface	SATA: 1 SATA interface Capacity: Up to 10 TB capacity for each disk USB Interface: Rear panel: 2 × USB 2.0
General	Power Supply: 12 VDC, 2 A Consumption: ≤ 10 W (without HDD) Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity: 10% to 90% Dimension (W × D × H): 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch) Weight: ≤ 1.6 kg (without HDD, 3.5 lb.)
