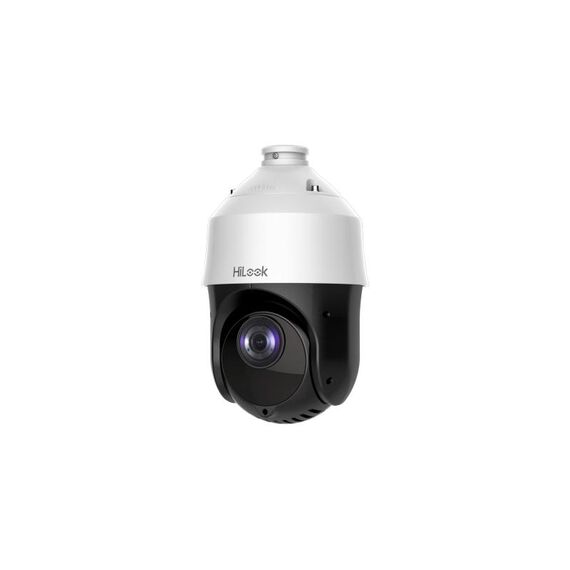

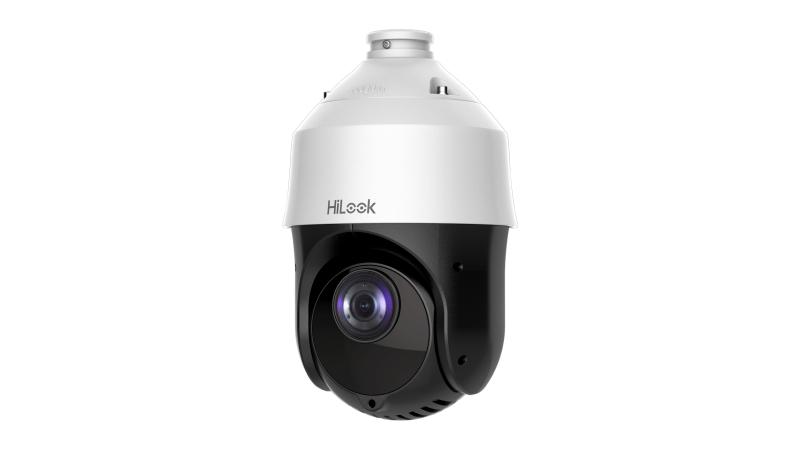

HiLook 4-inch 2 MP 15X Powered by DarkFighter IR Analog Speed Dome - PTZ-T4215I-D

Write a review

$329⁰⁰ $445⁰⁰

Add to cart

HiLook 4-inch 2 MP 15X Powered by DarkFighter IR Analog Speed Dome - PTZ-T4215I-D

Write a review

CODE:

301205343

$329⁰⁰ $445⁰⁰ -26%

In stock

Four-inch 2 MP camera with pan, tilt and zoom (15x) ability
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Minimum quantity for "HiLook 4-inch 2 MP 15X Powered by DarkFighter IR Analog Speed Dome - PTZ-T4215I-D" is 1.

Buy now with 1-click

Add to wish list Compare

Shipping time and rates

Description
Features
Attachments
Reviews

PTZ-T4215I-D Specifications Table

Category	Specification
Camera	Image Sensor: 1/2.8" Progressive Scan CMOS. Max. Resolution: 1920 × 1080. Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR. Shutter Speed: PAL: 1/1 s to 1/10,000 s; NTSC: 1/1 s to 1/10,000 s. Day & Night: IR cut filter. Zoom: 15× optical, 16 × digital.
Lens	Focal Length: 5 mm to 75 mm, 15 × optical. FOV: Horizontal FOV: 53.8° to 4.0° (wide to tele). Focus: Auto, semi-auto, manual. Aperture: F1.6 to F3.5. Zoom Speed: Approx. 2.4 s (optical, wide to tele).
Illuminator	Supplement Light Type: IR. Supplement Light Range: Up to 100 m.
PTZ	Movement Range (Pan): 360° endless. Movement Range (Tilt): -15° to 90° (auto flip). Pan Speed: Pan manual speed: 0.1° to 80°/s; Pan preset speed: 80°/s. Tilt Speed: Tilt manual speed: 0.1° to 80°/s; Tilt preset speed: 80°/s. Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples. Presets: 256. Preset Freezing: Yes. Patrol Scan: 10 patrols, up to 32 presets for each patrol. Pattern Scan: 5 patterns, record time over 10 minutes for each scan. Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None. PTZ Status Display: Yes. Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None. Power-off Memory: Yes.
Video	Frame Rate: 50 Hz: 25 fps @(1920 × 1080); 60 Hz: 30 fps @(1920 × 1080).
Network	Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR).
Image	Image Settings: AGC, white balance. Wide Dynamic Range (WDR): ≥ 120 dB. Image Stabilization: EIS. Image Enhancement: BLC, HLC, 3D DNR. Privacy Mask: 8 programmable privacy masks. Regional Focus: Yes.
Interface	Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC). RS-485: Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol.
General	Power: 12 VDC, max. 20 W (IR: 7 W). Dimension: Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4"). Weight: Approx. 2 kg (4.41 lb.). Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less. Language: English. Approval: Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection.

PTZ-T4215I-D Quick Start Guide (UD24282B_Baseline_HiLook-Quick-Start-Guide-of-Analog-Speed-Dome_V3.51_20210616.pdf, 3,298 Kb) [Download]

PTZ-T4215I-D User manual (UD15210B-B_Baseline_Hilook_User-Manual-of-HD-TVI-Speed-Dome_V.3.51_20221222.pdf, 1,204 Kb) [Download]
