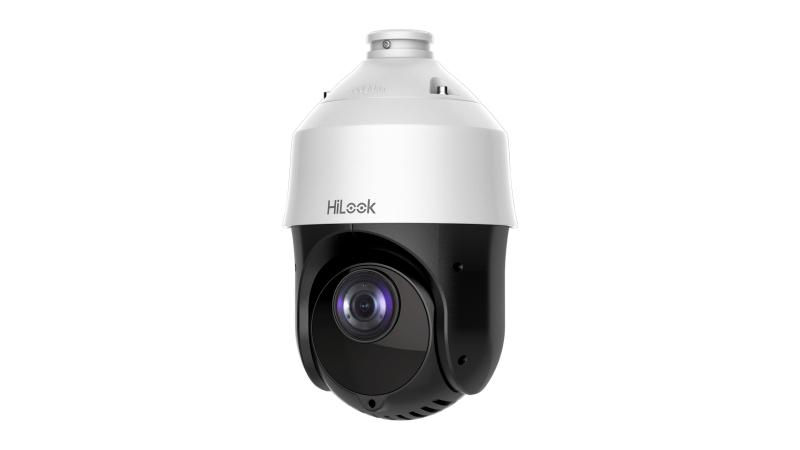

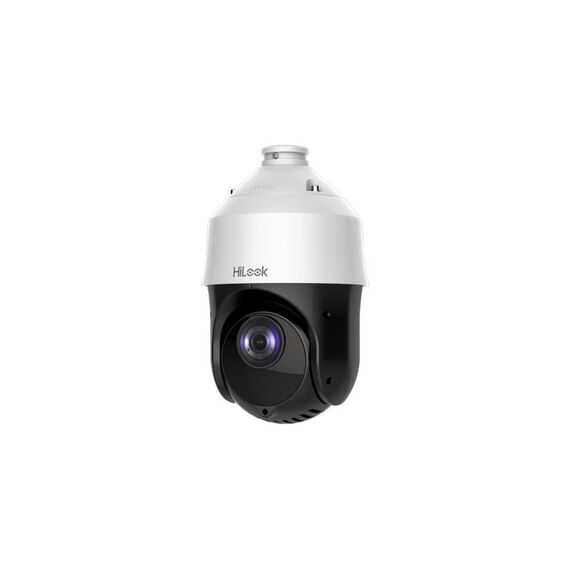

HiLook 4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome

HiLook 4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome - PTZ-T4225I-D

$409⁹⁰ $549⁰⁰ -25%

In stock

Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Minimum quantity for "HiLook 4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome - PTZ-T4225I-D" is 1.

Buy now with 1-click

Add to wish list Compare

Shipping time and rates

PTZ-T4225I-D Specifications Table

Category	Specification
Camera	Image Sensor: 1/2.8" Progressive Scan CMOS. Max. Resolution: 1920 × 1080. Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR. Shutter Speed: PAL: 1/1 s to 1/10,000 s; NTSC: 1/1 s to 1/10,000 s. Day & Night: IR cut filter. Zoom: 25 × optical, 16 × digital.
Lens	Focal Length: 4.8 mm to 120 mm, 25 × optical. FOV: Horizontal FOV: 57.6° to 2.5° (wide to tele). Focus: Auto, semi-auto, manual. Aperture: F1.6 to F3.5. Zoom Speed: Approx. 3.2 s (optical, wide to tele).
Illuminator	Supplement Light Type: IR. Supplement Light Range: Up to 100 m.
PTZ	Movement Range (Pan): 360° endless. Movement Range (Tilt): -15° to 90° (auto flip). Pan Speed: Pan manual speed: 0.1° to 80°/s; Pan preset speed: 80°/s. Tilt Speed: Tilt manual speed: 0.1° to 80°/s; Tilt preset speed: 80°/s. Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples. Presets: 256. Patrol Scan: 10 patrols, up to 32 presets for each patrol. Pattern Scan: 5 patterns, record time over 10 minutes for each scan. Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None. PTZ Status Display: Yes. Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None. Power-off Memory: Yes.
Video	Frame Rate: 50 Hz: 25 fps @(1920 × 1080); 60 Hz: 30 fps @(1920 × 1080).
Network	Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR).
Image	Image Settings: AGC, white balance. Wide Dynamic Range (WDR): ≥ 120 dB. Image Stabilization: EIS. Image Enhancement: BLC, HLC, 3D DNR. Privacy Mask: 8 programmable privacy masks. Regional Focus: Yes.
Interface	Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC). RS-485: Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol.
General	Power: 12 VDC, max. 20 W (IR: 7 W). Dimension: Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4"). Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less. Language: English. Approval: Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection.

Category

Specification

Camera

Image Sensor: 1/2.8" Progressive Scan CMOS.
Max. Resolution: 1920 × 1080.
Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR.
Shutter Speed: PAL: 1/1 s to 1/10,000 s; NTSC: 1/1 s to 1/10,000 s.
Day & Night: IR cut filter.
Zoom: 25 × optical, 16 × digital.

Lens

Focal Length: 4.8 mm to 120 mm, 25 × optical.
FOV: Horizontal FOV: 57.6° to 2.5° (wide to tele).
Focus: Auto, semi-auto, manual.
Aperture: F1.6 to F3.5.
Zoom Speed: Approx. 3.2 s (optical, wide to tele).

Illuminator

Supplement Light Type: IR.
Supplement Light Range: Up to 100 m.

PTZ

Movement Range (Pan): 360° endless.
Movement Range (Tilt): -15° to 90° (auto flip).
Pan Speed: Pan manual speed: 0.1° to 80°/s; Pan preset speed: 80°/s.
Tilt Speed: Tilt manual speed: 0.1° to 80°/s; Tilt preset speed: 80°/s.
Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples.
Presets: 256.
Patrol Scan: 10 patrols, up to 32 presets for each patrol.
Pattern Scan: 5 patterns, record time over 10 minutes for each scan.
Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None.
PTZ Status Display: Yes.
Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None.
Power-off Memory: Yes.

Video

Frame Rate: 50 Hz: 25 fps @(1920 × 1080); 60 Hz: 30 fps @(1920 × 1080).

Network

Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR).


Image Settings: AGC, white balance.
Wide Dynamic Range (WDR): ≥ 120 dB.
Image Stabilization: EIS.
Image Enhancement: BLC, HLC, 3D DNR.
Privacy Mask: 8 programmable privacy masks.
Regional Focus: Yes.

Interface

Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC).
RS-485: Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol.

General

Power: 12 VDC, max. 20 W (IR: 7 W).
Dimension: Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4").
Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less.
Language: English.
Approval: Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection.
