| Camera | |
|---|---|
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360° Tilt: 0° to 180° Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm and 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm: Horizontal FOV: 85° Vertical FOV: 63° Diagonal FOV: 110° 3.6 mm: Horizontal FOV: 80° Vertical FOV: 63° Diagonal FOV: 105° |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR, AGC |
| Frame Rate | TVI: 5 M @ 20 fps, 4 M @ 30/25 fps, 1080p @ 30/25 fps AHD: 5 M @ 20 fps, 4 M @ 30/25 fps CVI: 4 M @ 30/25 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC |
| White Balance | ATW/MANUAL |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Material | Metal |
| Dimension | 165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28") |
| Weight | Approx. 230 g (0.51 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F) Humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ±25% |
| Consumption | Max. 4.3 W |
| IR Range | Up to 20 m |
| Approval | Protection IP66 |

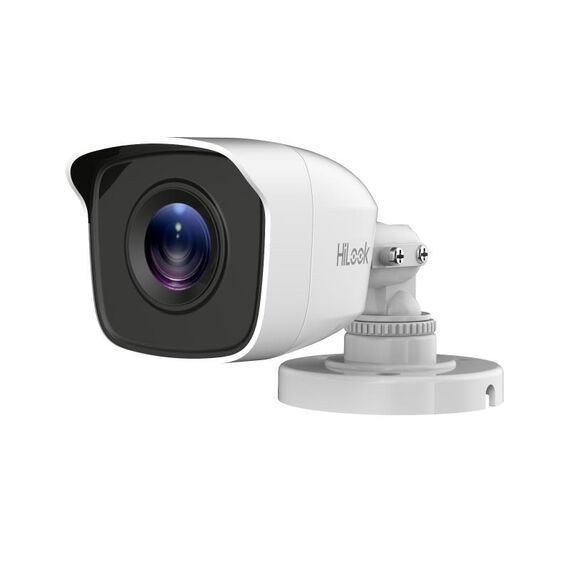

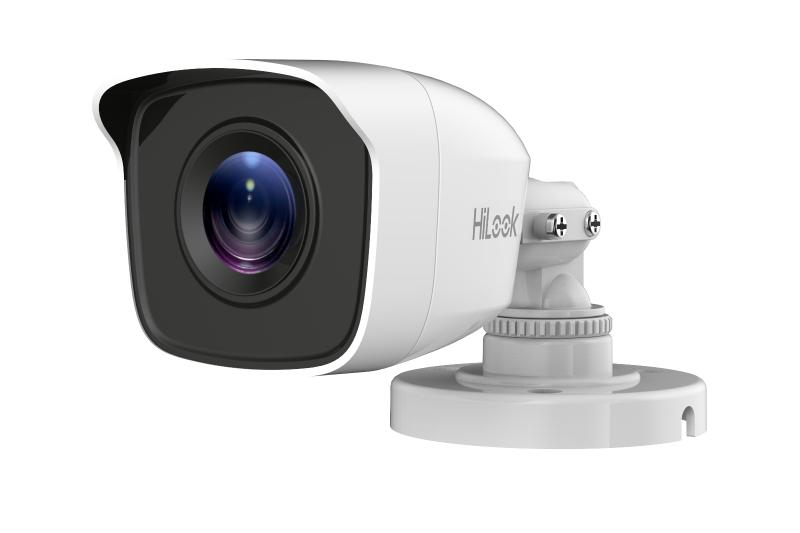

Model
THC-B150-M
Camera Lens
2.8mm
Dynamic Range
Optical WDR
IR Range
UP TO 20m
Material
Metal Body
Protection
IP66
Resolution
5MP
Type
Bullet Camera
