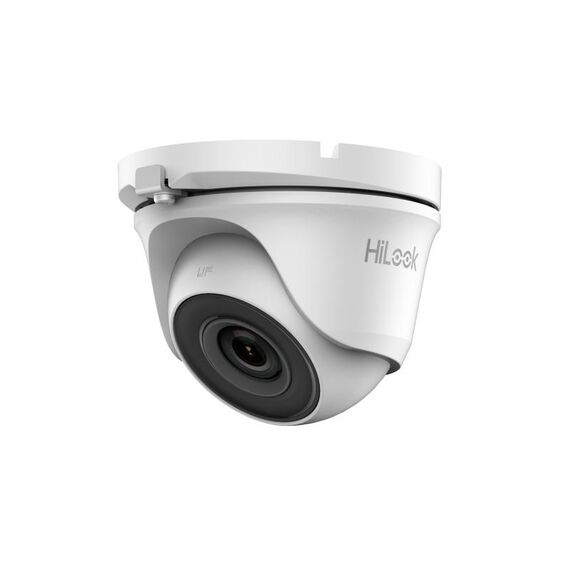

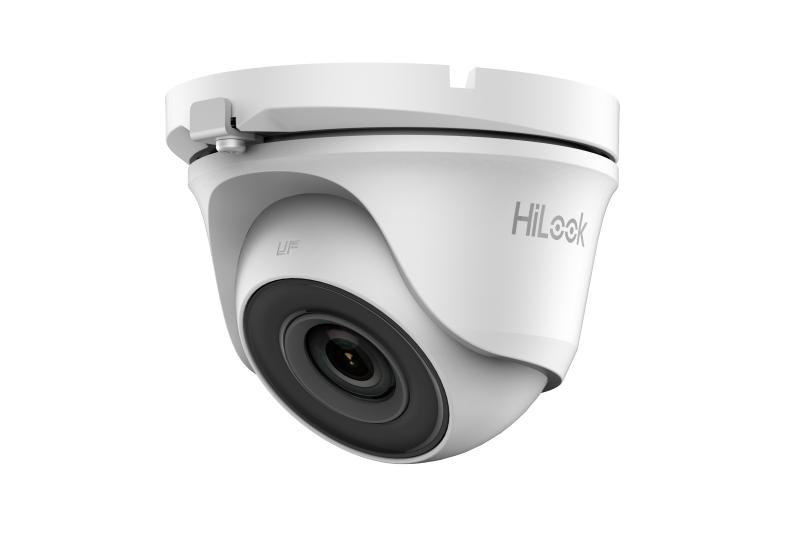

HiLook by HikVision 5 MP Fixed Turret TVI Camera - THC-T150-M

Write a review

CODE:

300615179

$47⁰⁰ $63⁰⁰ -25%

In stock

Versatile and powerful, the HiLook THC-T150-M adapts to your needs with multiple lens options and support for TVI, AHD, CVI, and CVBS interfaces, ensuring seamless integration with your existing surveillance system.

Camera Lens:

2.8mm 3.6mm

Minimum quantity for "HiLook by HikVision 5 MP Fixed Turret TVI Camera - THC-T150-M" is 1.

Buy now with 1-click

Add to wish list Compare

Shipping time and rates

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Camera Lens
$47⁰⁰ $63⁰⁰	In stock	300615179	Camera Lens: 2.8mm
$47⁰⁰ $63⁰⁰	In stock	300615180	Camera Lens: 3.6mm

Description
Features
Reviews

HiLook THC-T150-M 5MP Fixed Turret Dome TVI Camera Specifications

Camera	Description
Image Sensor	1/3" Progressive Scan CMOS
Effective Pixels	2560 (H) × 1440 (V)
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Lens	2.8 mm, 3.6 mm, 6 mm fixed lens
Lens Mount	M12
Angle of View	2.8mm: H: 103°, V: 58°, D: 122°; 3.6mm: H: 83°, V: 45°, D: 99°; 6mm: H: 50°, V: 28°, D: 58°
Day& Night	IR cut filter
DNR	3D DNR
WDR	120dB
BLC	Yes
Video Compression	H.265+/H.265/H.264+/H.264
Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	4MP (2560 × 1440)@25/30 fps
Sub Stream	1080P/720P/D1/CIF@25/30 fps
Interface	TVI/AHD/CVI/CVBS (switchable)
Audio	No
Ethernet Interface	No
S/N Ratio	>65dB
IR Range	Up to 30 m
Power Supply	12 VDC ± 25%
Power Consumption	Max. 4 W (12 VDC, IR on)
Working Environment	-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
Ingress Protection	IP67
Dimensions	Φ70 × 155 mm (Φ2.8" × 6.1")
Weight	Approx. 200 g (0.4 lb.)
Material	Metal

Other Specification

- 5MP Fixed Turret Dome Camera

Camera

- Image Sensor – 5 MP CMOS
- Max. Resolution – 2560 (H) × 1944 (V)
- Min. Illumination – Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time – PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
- Day & Night – ICR
- Angle Adjustment – Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Signal System – PAL/NTSC

Lens

- Lens Type – 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV – 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°, 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
- Lens Mount – M12


- Image Parameters Switch – STD/HIGH-SAT
- Image Settings – Brightness, Sharpness, Mirror, Smart IR, AGC
- Frame Rate – TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, CVI: 4 M @ 30 fps, 4 M @ 25 fps, CVBS: PAL/NTSC
- Day/Night Mode – Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR) – Digital WDR
- Image Enhancement – BLC, HLC
- White Balance – ATW/MANUAL

Interface

- Video Output – 1 HD analog output

General

- Material – Metal
- Dimension – Ø 82.6 mm × 69.66 mm (Ø 3.25″ × 2.74″)
- Weight – Approx. 230 g (0.51 lb.)
- Operating Condition – -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication – HIKVISION-C
- Language – English
- Power Supply – 12 VDC ±25%
- Consumption – Max. 4.3 W
- IR Range – Up to 20 m
